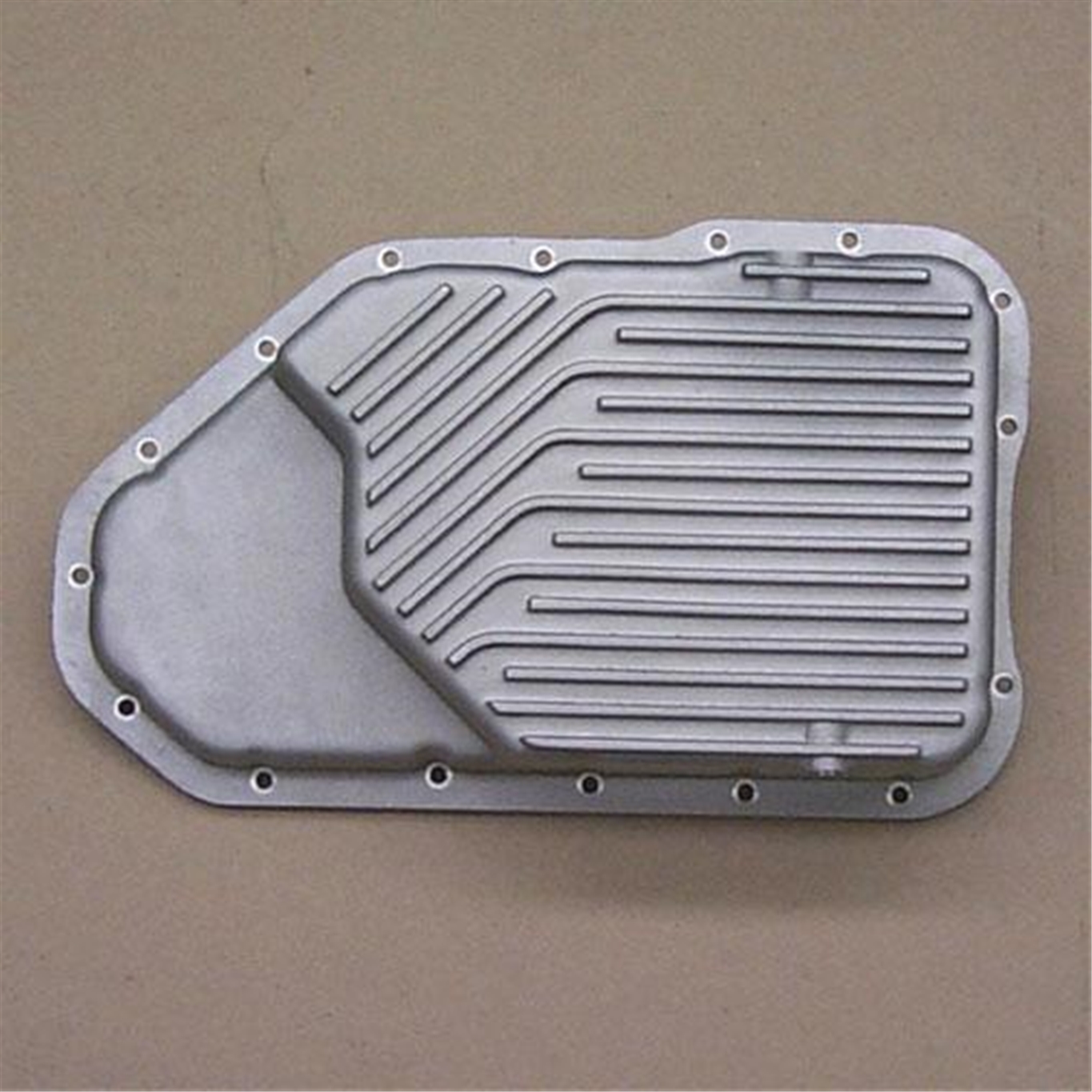

This PML deep pan fits many models of rear wheel drive cars with this 4 speed automatic transmission. GM used this transmission from 1982-1990. The 200 4R is also popular in restorations and racing applications today.
Examples of vehicles using the 200–4R transmissions are:
- Buick Regal T Type
- Grand National
- Chevrolet Monte Carlo SS
Installer must verify clearance, fit and function. Vehicle configurations vary.
Volume: 2.5 qts. over stock
Dimensions: Click here for dimensions.
Number of Bolts: 16
PML designed this pan to meet the demands of GM high performance cars with the 200 4R transmission.
Gasket
For a gasket, PML generally recommends cork or cork and rubber type gasket.
Inside of Pan
In the interior, the pan features cast-in baffles.
Click on image to see a larger picture of the inside of the pan. A separate window will open and load the image.
Filter Information
This PML pan works with stock filters. Example part numbers are: AC Delco TF234, Fram FT1057B, Fram FT1057C, Hastings TF60, Purolator P1194, Wix 58896
PML 200 4R transmission pans have filter supports so a filter extension is not needed.
The supports hold the filter at the same level as the stock pan. The distance from the bottom of the stock pan to the top of the flange is 2.4 to 2.6 inches. The distance from PML filter supports to the top of the flange is the same. The stock filter is about 4.8 inches tall.
This shows the inside of the stock and PML 200 4R pans:
Some customers have reported to us that a 700R4 filter may also work with our 200 4R transmission pans. PML does not have any experience with this or recommend this.
Filter information is provided for reference only. Installer should verify transmission, filter and fitment based on the individual vehicle.
Drain Location
The PML deep 200 4R transmission pan has a drain on the driver side of the pan. (Click on image to view larger.)
A magnetic drain plug is included with each pan.
Optional Temperature Sending Unit Machining
A boss (thick area) on the passenger side of the pan is available for drilling and tapping if requested by the customer.
If you would like PML to drill and tap a boss, the machining charge is per hole. A plug for the hole is included.
The standard size is 1/8 NPT. If another size is needed, please call or email.
Click on image to view larger.
PML 200–4R Transmission Pans and Stock Pan Compared
Click on image to view larger in a new tab or window.
