Generally, this PML pan fits GM and Chevrolet 1997 and newer trucks, SUVs, and vans with the 4L80E, 4L85E transmission. Examples of vehicles that this pan may fit are:
- Avalanche 2500, 2002 to 2006 8.1 V8, see installation note at bottom
- Hummer H1, 1997 to 2005 with 5.7, 6.5 diesel engines
- C2500, K2500 1997 to 1999 with 454, 6.5 diesel engines
- C3500, K3500 1997 to 1999 with 454, 6.5 diesel engines
- Express, Savana, 1997 to 2009, 6.0, 6.5 & Duramax diesel engines, some 4.8
- Sierra, Silverado 2500/3500, 1999 and 2000
- Sierra, Silverado 2500/3500, HD or Classic, 2001 to 2007, 6.0 V8
- Sierra, Silverado 1500HD, 2001 to 2007, 6.0 V8
- Suburban 2500, 1997 to 2006 8.1 V8, see Avalanche installation note at bottom
Vehicle configurations vary so always check your configuration and clearance before ordering. Some models may require modification of the heat shield.
Earlier model year vehicles will need a pan without a slant to avoid interference with transmission internals. See this extra capacity PML pan for GM 4L80E/4L85E transmissions on early model trucks.
For Hummer H1: please read these additional instruction tips: PML Part Number 9437 on a Hummer H1 Installation (a new window or tab will open with the PDF file).
Installation Notes:
- Because of the frame cross member, many vehicles will need to loosen the transmission mounts and jack up the transmission to remove the stock pan and install the PML pan.
- Some vehicles may need to modify or remove the heat shield.
- Depending on clearance available on the vehicle, accessing the mounting bolts maybe difficult. PML provides allen head bolts and PML pan walls are thicker and closer to the bolt holes than the stock pan.
Volume: 3.25 qts. over stock
Dimensions: Click here for dimensions.
Number of Bolts: 17
Benefits:
- Extra Capacity
- Drain hole and magnetic drain plug for easy fluid changes
- Finned for cooling

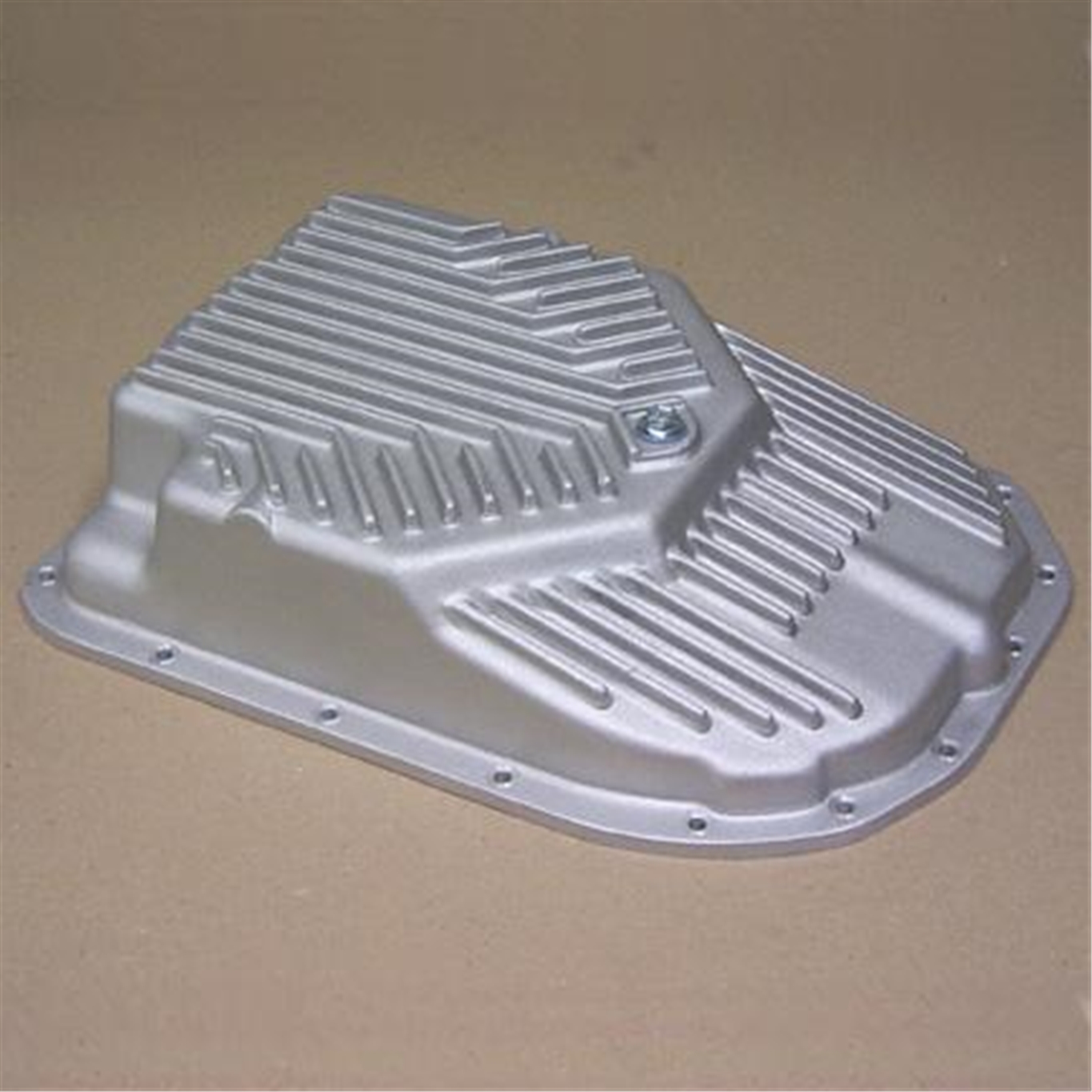

- Heavy duty sand cast aluminum construction
- Machined flat gasket sealing surface
- Location for optional temperature sensor machining
Filter
Both GM early model and late model 4L80 filters should work with this transmission pan. This PML pan has filter supports to hold the filter in place. A filter extension is not needed.
The installer must verify fitment and installation.
Click on image to view larger.
Cable Bracket on Stock Pan
Some stock pans have a bracket for the shift cable assembly attached to the flange.
Our customer Darrell provided these Guidelines for Modifying the Bracket to work with the PML pan.
Image PML pan installed with bracket modified to fit.
PML Transmission Pan Compared to Stock
Click on image to view larger in a new tab or window.
