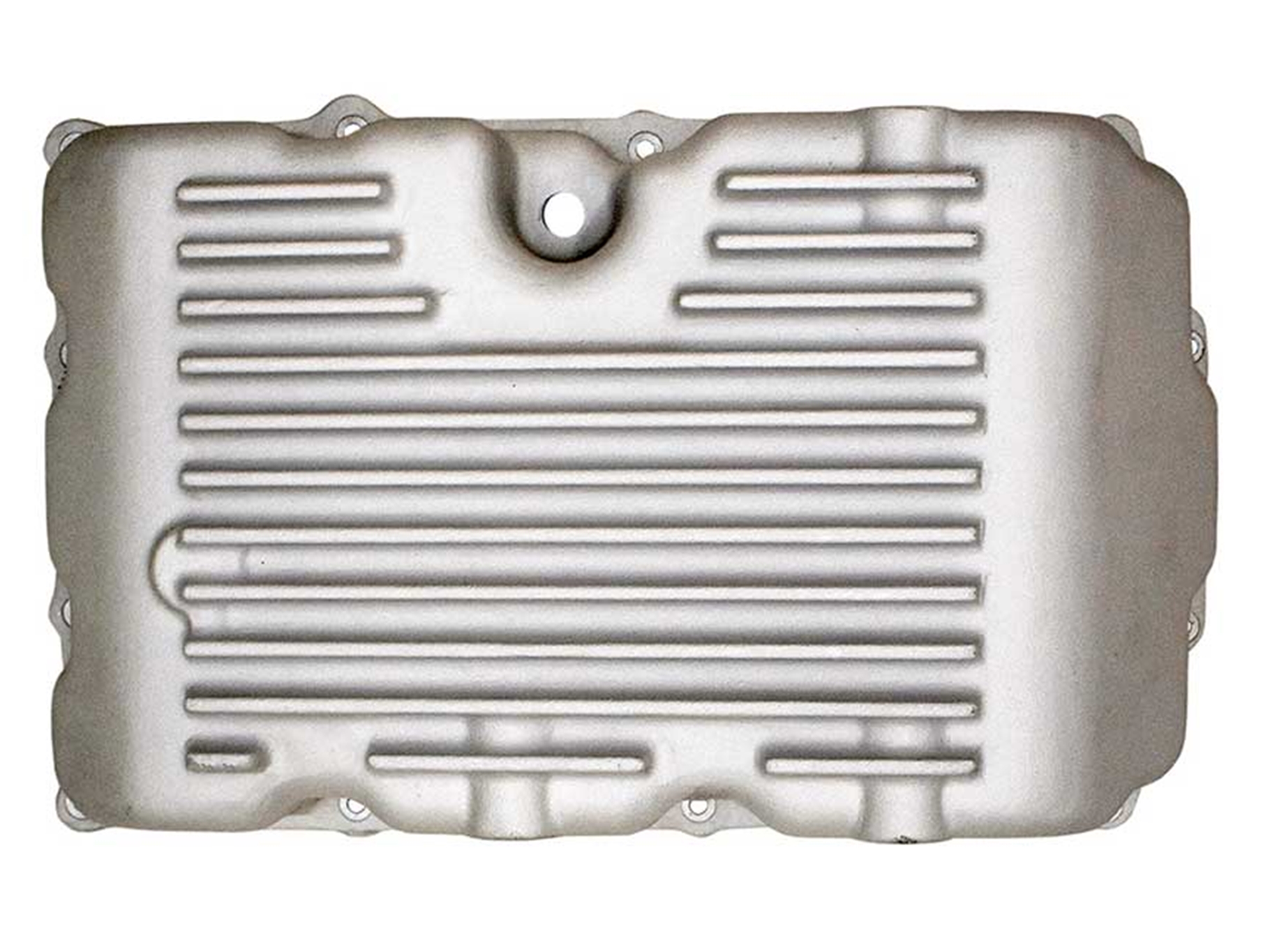

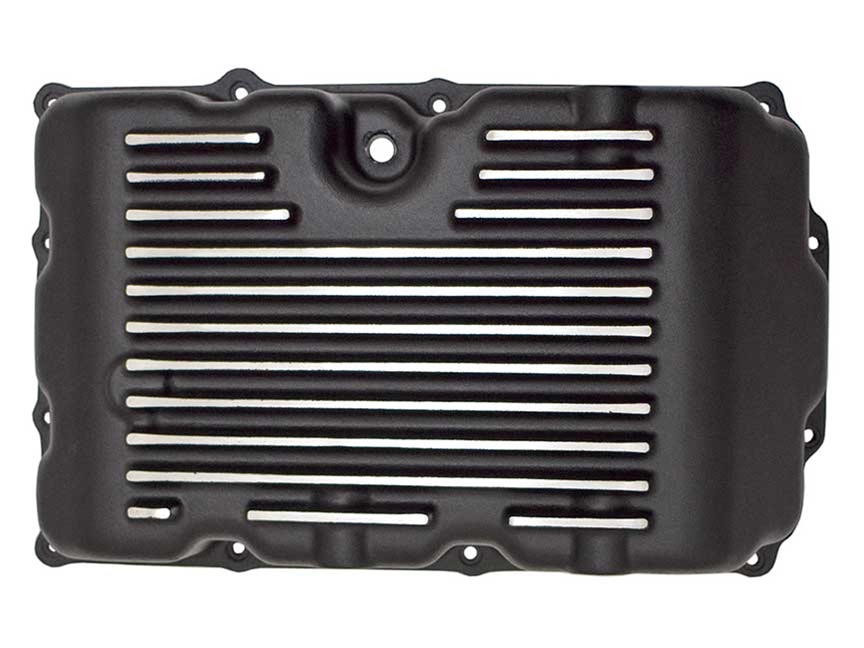

For Tundra, Landcruiser, Sequoia, LX570. Pan includes custom gasket, magnetic drain plug and mounting hardware.
Volume: 3.25 quarts over stock
Dimensions: Click here for dimensions.
Number of Bolts: 12
PML AB60E, AB60F transmission pan includes transmission pan, custom gasket, bolts, fill plug and magnetic drain plug.
Benefits:
- Extra fluid capacity
- Cooling fins to dissipate heat
- Thick flange for a secure seal
- Interior baffles to reduce sloshing
- Shape clears frame cross members
- Does not hang below frame for ground clearance
- Heavy duty construction
- Drain hole on the side and magnetic drain plug included
- New mounting bolts included
Transmission Filter and Gasket
Click on an image to view larger.
This PML transmission pan works with the stock filter, available from a Toyota dealer or an auto parts store. Baffles on the inside of the PML pan reduce sloshing, direct the flow of fluid toward the pickup, and aid in heat dissipation.
This PML transmission pan will not work with the stock gasket. PML includes a cork gasket, of our own design, for this transmission pan. Some prefer to use silicon "gasket maker" which also will make a great seal. Order additional PML AB60 transmission pan cork gaskets here: PML Gasket.
The PML gasket will not work with the stock pan.
Drain, Level Check and Optional Temperature Sending Unit Locations
Drain on PML pan. Click on image to view larger.
PML located the drain plug on the left side of the pan. This is the driver side on US vehicles. On the side of the pan, the drain plug is less likely to get damaged.
The level check hole is on the right (passenger) side, in the same location as the stock hole. This hole can also be used to fill.
PML designed the pan with two locations that can be drilled and tapped for a temperature sending unit if needed. One location is on each side. If you would like PML to drill and tap hole, the machining charge is per hole. A plug for the hole is included.
The standard size is 1/8 NPT. Call or email if you need a different size.
Click on image to view larger in a new tab or window.
The 6 speed AB60E, AB60F transmission may be found in Toyota and Lexus trucks and SUVs such as:
- Toyota Landcruiser 5.7L, 2009 to 2015 — check for skid plate
- Toyota Landcruiser Series 200 and Series 79 (Australia) — check for skid plate
- Toyota Sequoia 5.7L, 2008 to 2018
- Toyota Tundra 5.7L, 2007 to 2018
- Lexus LX570 5.7 and some 4.5, 2008 to 2018
Always check your vehicle configuration and clearance before ordering. Verify that your vehicle has an AB60 transmission and has space for a larger aftermarket pan.
Vehicle with skid plates may not have space for this extra capacity transmission oil pan with the skid plate installed. A spacer for the skid plate may be possible.
This PML transmission pan will not work with the stock gasket. A gasket is included with the pan.
