Chevrolet Big Block Valve Covers with Raised CHEVROLET Scri

Retail Price: $570.31
Price: $456.25 ea
  • SKU9737
- +

PML designed these valve covers using original GM cast iron heads. Chevrolet Big block engines include: 396, 427, 454, and the 502.

These valve covers are standard height on the inside but taller than stock on the outside because of the thick walls and script and fins on top.

Engine configurations so check clearances.

Dimensions: Click here for a pdf file with dimensions. A separate window or tab will open.

Finishes: Read about finishes and construction of PML parts.

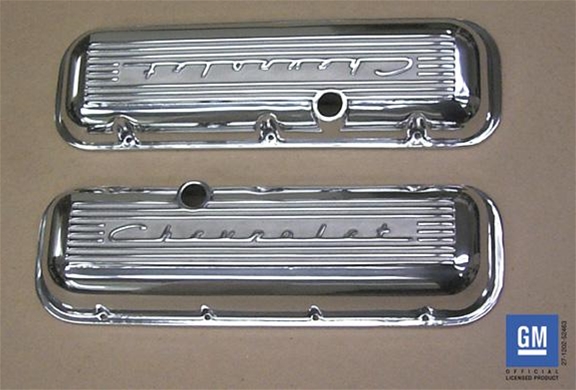

These heavy duty valve covers from PML for big block Chevy engines feature raised CHEVROLET script and fins and top quality construction. The classic CHEVROLET script is licensed from General Motors.

Benefits:

  • Traditional design and sand cast aluminum construction for an old-school look and feel
  • PCV and oil fill/breather holes
  • Holes have internal baffles cast to reduce oil blow-by
  • Thick walls and gasket flanges for strength and a secure seal to the cylinder head

Chevrolet big block engines include: 396, 427, 454, and the 502

PML also makes a tall height version of this design.

General Motors Trademarks are used under license to PML, Inc.

Gaskets

Gaskets are not included with these valve covers. PML designed these Chevy Big Block valve covers to work with cork composite gaskets.

Breather and PCV Holes

PML Chevy big block valve covers have PCV and oil fill/breather holes and baffles cast into the covers. The internal baffles help prevent oil blow-by out the PCV and breather holes.

These holes work with standard 1 1/4 inch grommets.

If desired, a breather cap with a 1 inch outer diameter tube can be used with the breather grommet.

PML big block valve cover with breather installed   PML big block valve cover with breather and grommet, not installed   Top view of PML big block valve cover with chrome breather
Click on small image to view larger image in a new tab or window.

Checking Clearance

Click for dimension. A separate window or tab will open.

Engine configurations vary so please check for clearance for larger valve covers. The walls and gasket flange are thicker than stock and the fins and script add height to the top.

Look for clearance on the inside also, especially if you have roller rockers. A simple check can be made if you have the stock valve cover. Set the stock cover on the head and measure the distance, if any, between the gasket flange surface and the head.

The PML tall version of these valve covers is approximately 3/8 inch taller.

Included With Valve Covers

These valve covers ship with new mounting bolts and standard PCV and breather grommets installed in the valve covers.

Image shows polish finish valve covers. The same items are included for all finishes. Click on image to view larger in new tab or window.

Flyer

Click to view or print PML Big Block Valve Covers PDF Flyer. A separate window will open and load the pdf file.

PML Valve Covers Compared to Stock

PML Valve Cover Part Number 9737 compared to stock   PML Valve Cover Part Number 9737,
compared to stock, top view
Click on image to view larger in a new tab or window.
