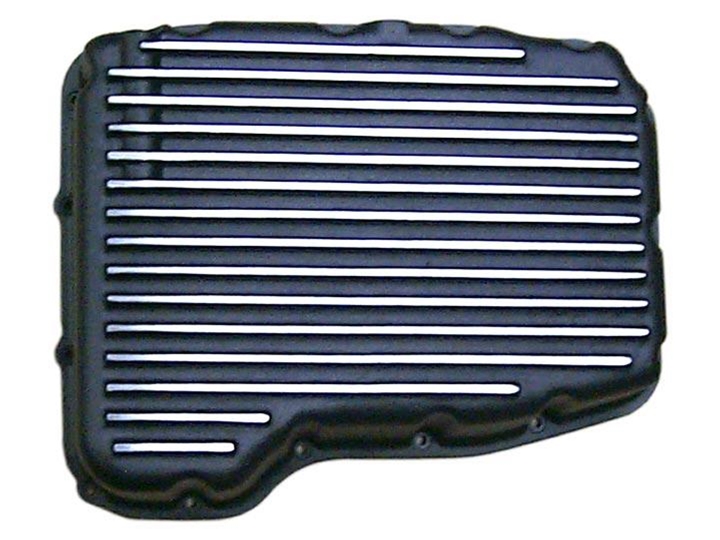

This extra deep PML oil pan for Dodge RFE transmissions is designed to replace the stock pan on these vehicles:
2013 and newer trucks: Cooler lines run under the stock transmission pan on many models, starting in 2013.
Several customers have installed PML's deep RFE pan with minor bending of the bracket holding the cooler lines.
If you have a 2013 or newer truck, check carefully for clearance.
PML makes four pans for the 68RFE, 45RFE, 5-45RFE, 65RFE, 66RFE, 68RFE transmissions. All fit the transmission and the different designs suit a variety of vehicles and applications.
Left (driver) side of pan and drain hole. 11039, 11079 and 11078 parallel to ground when installed.
Rear of pans. 11078 and 11079 step down to clear the Hemi engine exhaust routing.
Filter Information
There are two different stock pans and two different filters for this Chrysler/Dodge transmission.
These are sometimes called the "4WD" filter and pan although they are used on 2WD and 4WD vehicles. The filter has a long pick up long tube in the middle.
These are sometimes called the "2WD" filter and pan. Seen more commonly on 2006 and older trucks. The pick up tube is short and located close to the end of the filter.
For PML part numbers 10304 and 11039, you can use either filter. For PML part numbers 11078 and 11079, you must use the "4WD" filter.
PML does not include a filter with the pan. Thanks to Eric who provided part numbers for filters that will work with all PML Dodge RFE pans:
- OEM: 5013470AB
- Fleetguard: TF15072
- FRAM: FT1223
- WIX: 58843 (kit)
The filter bolts on to the valve body. No filter support or extension is needed. The fluid will be at the same level with a stock pan as with the PML pan. The filter will pick up from the same place. PML designs pans and covers to work with stock parts without the need for additional modifications or complications.
It is the responsiblility of the installer to verify filter and fitment.
If you have a skid plate, you may need to move it downwards away from the transmission pan.
For some vehicles that have the exhaust or frame under the stock pan, you may think there is enough clearance between the exhaust and the transmission housing for this PML pan.
If you measure, it will seem very close. There is not enough space.
It's been tried. After removing fins and part of the PML pan bottom, the pan will go on but the exhaust then sits right on the transmission pan, which is very bad.
This design has a slant to it (one side longer than the other) so that once on the truck, the bottom is parallel to the ground like the stock pan. Unlike most other transmissions, Dodge put an angle on the gasket surface.
Baffles
PML Transmission Pan Features
Volume: 4.5 qts. over stock for 2wd, 4 qts. over stock for 4wd
Dimensions: Click here for dimensions. A PDF file will open in a separate window.. Compared to the stock 4WD pan, this pan is 1 7/8 inches deeper at front and 1 1/2 inches deeper in back.
Number of Bolts: 15
