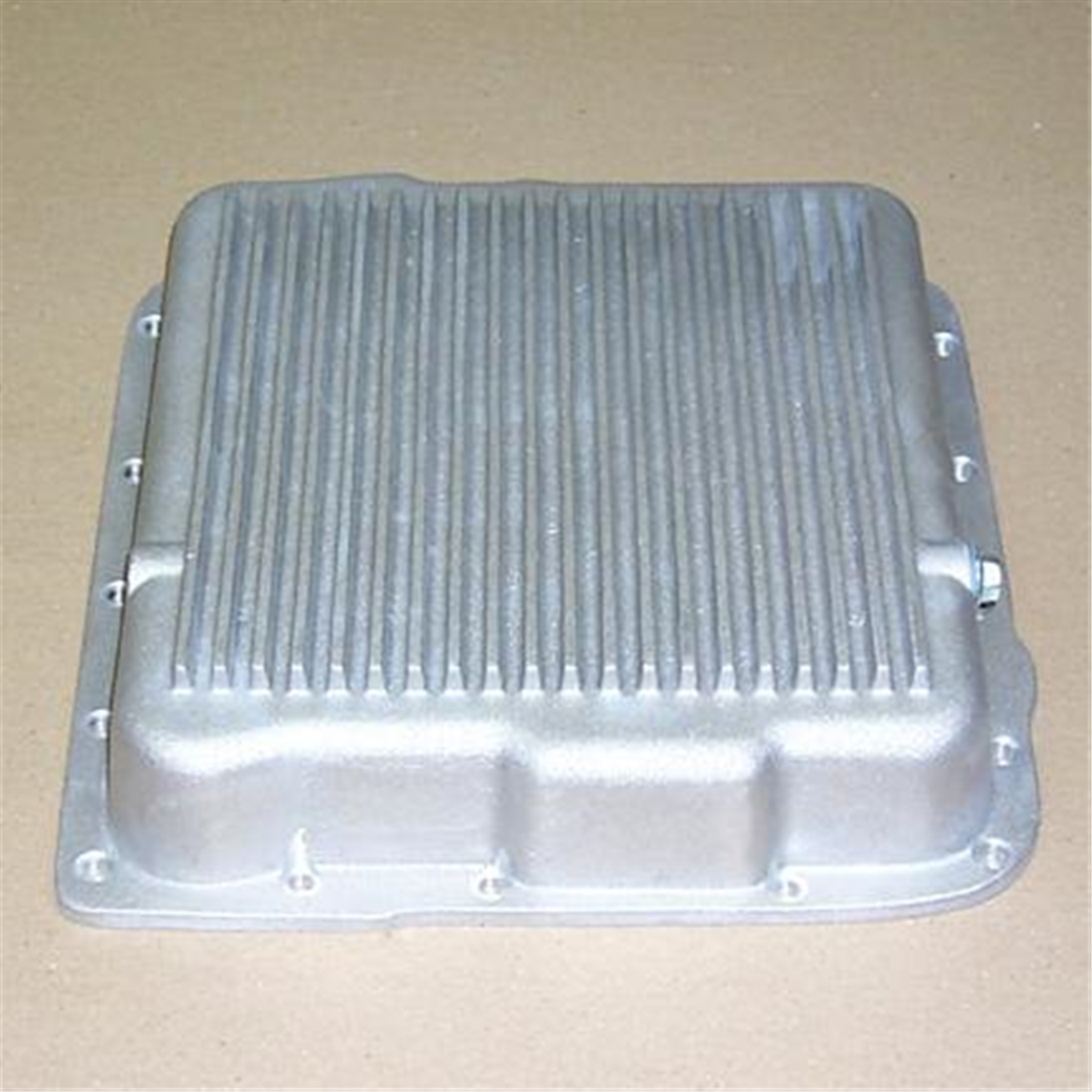

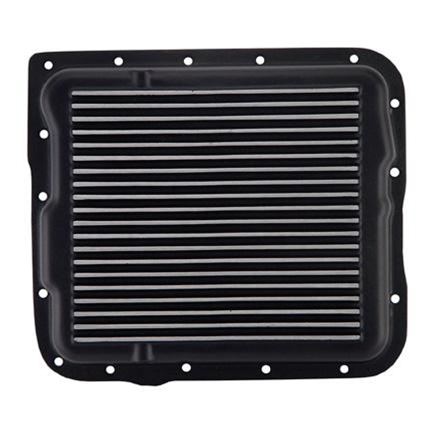

GM 700R4, 4L60, 4L60E Stock Capacity Pan

PML designed this pan as a stock capacity, heavy duty replacement for the GM shallow pan that came with vehicles model year 1998 and older and a few vehicles, such as Camaro and Firebird up to 2002.

A stock GM shallow pan and a stock GM deep pan are shown in the picture below.

Note the differences in depth and the step at back of the GM Deep Pan. (Click on image to view larger.)

Note there are two versions of the stock GM shallow pan. They have the same depth. The older version is primarily found on 700R4 transmissions. This PML pan can replace either style GM shallow pan.

 Click on image to view larger.

Generally, here are some examples of vehicles that this PML pan fits:

• Astro Van, 1985 to 1998, 2.5 or 4.3 engine
• Camaro, 1983 to 1992, 2.8, 5.0 or 5.7 engine (shift cable bracket modification needed)
• Camaro, 1993 to 2002 3.4, 3.8, or 5.7 engine
• Corvette, 1984 to 1996, 5.7, LT1 or LT4 engine (shift cable bracket modification needed)
• Firebird, 1983 to 1992, 2.8, 5.0 or 5.7 engines (shift cable bracket modification needed)
• Firebird, 1993 to 2002 3.4, 3.8 or 5.7 engine
• Safari Van, 1985 to 1998, 2.5 or 4.3 engine

Always check your vehicle to verify stock pan and clearance. Make sure there is ground clearance and check for the drive shaft, exhaust or frame cross members near or under the stock pan prior to ordering. PML also makes an extra capacity pan for this transmission (see our deep pan or deep pan with step).

If you have a Corvette, PML also makes transmission pans for C5 (PML part number 8650-3) and C6 Corvettes (PML part number 11087) and valve covers with CORVETTE script for small and big block Chevy engines.

Volume: stock capacity compared to stock GM shallow pan

Dimensions: Click here for dimensions.

Number of Bolts: 16

This PML pan fits 700R4, 4L60, and 4L60E transmissions. GM and Chevy use these transmissions in many cars and trucks. This stock capacity pan works well on vehicles with limited clearance, like Corvette and Camaro. The 700R4 is also a popular aftermarket replacement transmission.

PML designed this pan as a stock capacity, heavy duty replacement for the GM shallow pan that came with vehicles model year 1998 and older and a few vehicles, such as Camaro and Firebird up to 2002.

A stock GM shallow pan and a stock GM deep pan are shown in the picture below.

Note the differences in depth and the step at back of the GM Deep Pan. (Click on image to view larger.)

Benefits:

• Drain hole and magnetic drain plug for easy fluid changes
• Finned for cooling
• Only 1/2 inch deeper than stock to maintain ground clearance
• Heavy duty sand cast aluminum construction
• Machined flat gasket sealing surface
• Can optionally be machined for a temperture sending unit
