Ford 10R140 Deep Transmission Pan

Retail Price: $500.00
Price: $395.95
  • SKU11180AC
- +
Other products by PML

Volume: about 3.75 quarts over stock

Dimensions: Click here for dimensions.

Number of Bolts: 20 bolts hold the pan on the transmission case

PML designed and is manufacturing an extra capacity pan for Ford 10R140 transmissions for 2020 and newer Ford heavy duty trucks.

Benefits of a PML 10R140 transmission pan:

  • Drain with magnetic drain plug included
  • Heavy duty sand cast aluminum construction (not plastic)
  • Finned to increase surface area for heat dissipation
  • Thick walls and gasket flange
  • Clearance for exhaust cross over pipes and frame cross members
  • Level check for compatibility for OEM pans with level check on the pan
  • Extra capacity

PML designed this extra capacity Ford 10R140 transmission pan for heavy duty Ford trucks with both diesel and gas engines.

These vehicles usually have a Ford 10R140 transmission and may be able to use this pan:

  • 2020 and newer F250
  • 2020 and newer F350
  • 2020 and newer F450, F550 and F600

Always check your vehicle. Configurations vary. Check for clearance for a larger pan. PML cannot guarantee fitment..

Included with PML 10R140 Transmission Pan

PML includes a cork composite gasket, magnetic drain plug, and a level check standoff pipe and level check hole plug. PML 10R140 pan works with the OEM bolts.

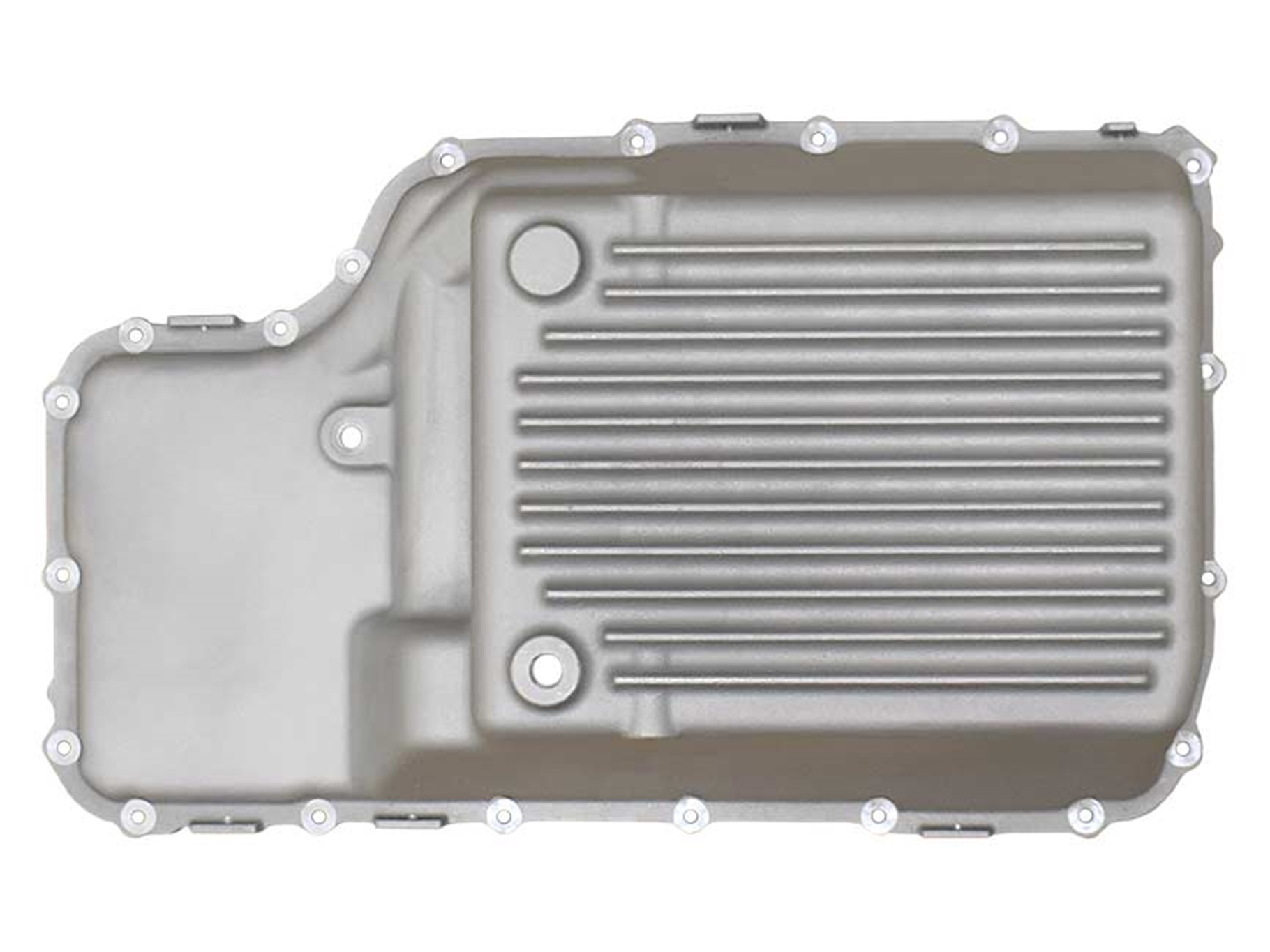

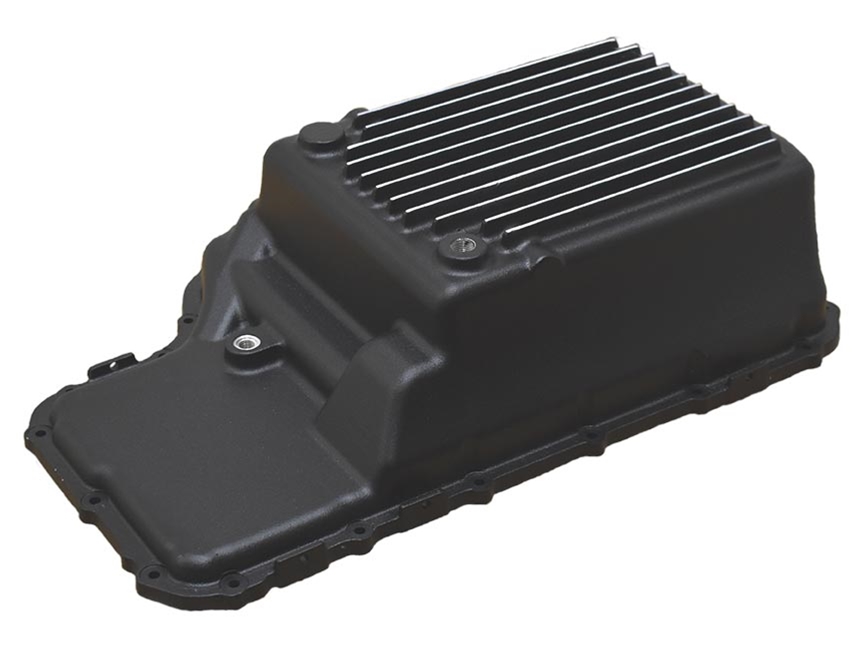

PML 10R140 transmission pan includes gasket and plugs, as cast finish   PML 10R140 transmission pan includes gasket and plugs, black powder coated  Click on image to view larger in a new tab or window.

Gasket

PML recommends cork or cork composite type gaskets. A custom PML cork composite gasket is included with each 10R140 transmission pan. The OEM gasket is an o ring and will not work with the PML pan.

PML 10R140 transmission pan with PML custom gasket  Click on image to view larger in a new tab or window.

Purchase additional gaskets here: PML 10R140 transmission pan gasket

RTV will also work as a gasket.

The OEM gasket is not compatible with the PML pan and the PML gasket is not compatible with the OEM pan.

Inside of PML 10R140 Transmission Pan

Inside of PML 10R140 transmission pan  Click on image to view larger in a new tab or window.

Inside of pan has baffles. The baffles reduce sloshing and aid in heat dissipation.

Drain, Level Check, Tabs, Optional Machining for a Temperature Sending Unit

This PML transmission pan has a drain hole on the bottom, fill/level check similar to stock pan, and tabs on the side of the flange.

drain and level check on PML 10R140 transmission pan  Click on image to view larger in a new tab or window.

There are two locations that can be drilled and tapped with a 1/8 NPT for an aftermarket temperature sending unit. One is shown in the image above and the other location is on the opposite side of the pan. There is an extra charge for PML to machine this.

The tabs on the side of the flange are for compatibility with the OEM pan. Picture shows the tabs on one side of the PML pan. On the other side of the PML pan, there are 3 more tabs.

If there is a heat shield, our customers have told us that it can be reinstalled after installing the PML pan. Minor modifications may be needed.

Level Check

PML and stock pan 10R140 transmission pan level check   Ford OEM 10R140 transmission pan level check   PML 10R140 transmission pan level check
Click on image to view larger.

Some OEM stock pans have a the level check in the pan. PML includes a level check that replicates the OEM pan level check. These are on the inside of the transmission pan. In the two close up pictures of the level check, there is a metal bar that sits on the flange for reference. The holes in the PML level check are the same distance above the flange as the holes in the stock pan level check.

Ford Stock 10R140 Transmission Pan

Stock Ford 10R140 Transmission Pan   Stock Ford 10R140 Transmission Pan outside, top down view   Stock Ford 10R140 Transmission Pan outside, side angle view   Stock Ford 10R140 Transmission Pan inside, top down view   Stock Ford 10R140 Transmission Pan inside, side view
Click on image to view larger in a new tab or window.
Images show: Ford OEM 10R140 transmission pan on a 2020 F250 6.7 Powestroke Diesel, top down view of outside of pan, side view of outside of pan, top down view of inside of pan, side view of inside of pan.

PML Transmission Pan Compared to Stock

This PML transmission pan is about 1.7 inches deeper than the OEM pan. These images show this PML transmission pan compared to the stock pan.

PML 10R140 deep pan compared to stock   PML Transmission Pan Part Number 11180, compared to stock, top view   PML Transmission Pan Part Number 11180, compared to stock, insides
Click on image to view larger in a new tab or window.
