Dodge RFE Transmissions Deep Pan

Retail Price: $464.75

Price: $357.50 ea

SKU10304

Finish

Description
Also in Category

Volume: 3 1/8 qts. over stock for 2wd, 2 1/2 qts. over stock for 4wd

Dimensions: Overall depth is about 1" more than stock. Click here for dimensions. Always check your vehicle to verify your configuration and clearance.

Number of Bolts: 15

PML makes four pans for the 68RFE, 45RFE, 5-45RFE, 65RFE, 66RFE, 68RFE transmissions. All fit the transmission and the different designs suit a variety of vehicles and applications.

Left (driver) side of pan and drain hole. 11039, 11079 and 11078 parallel to ground when installed.

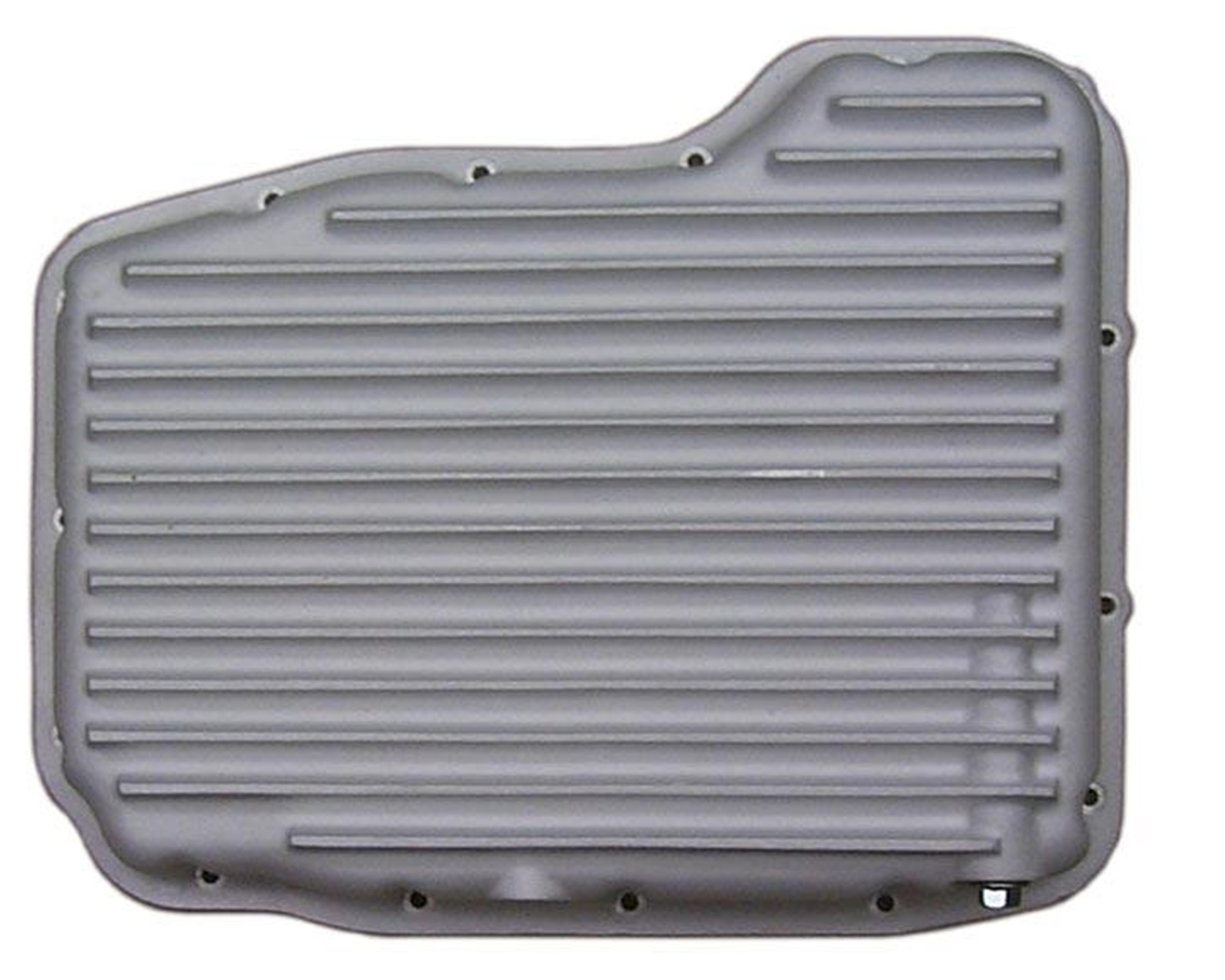

PML transmission pans for Dodge rfe transmissions

This PML deep oil pan for Dodge RFE transmissions is a direct replacement on these vehicles:

Ram 2500 & 3500, 2WD and 4WD, with 6.7 liter diesel engine, 2007&1/2; to 2013 (The 3500 HD Cab & Chassis has the Aisin transmission so this pan will not work)
Ram 1500 with Hemi engine, 2002 to 2005
Ram 1500 with 4.7 V8 engine, 2002 to 2013, 4, 5, or 6 speed transmission
2WD Dakota with 4.7 V8 engine, 2000 to 2004
2WD Durango with 4.7 V8 engine, 2000 to 2003
Jeep Grand Cherokee with 4.7 V8 engine, 1999 to 2004

2014 and newer trucks: Cooler lines run under the stock transmission pan on many models. We are working with our customers to determine if this pan will work. If you have a 2014 or newer truck, check carefully for clearance and let us know what you find. We have had the pan installed on a 2014 Ram 2500 and the pan cleared the cooler lines but the bracket holding the cooler lines had to be bent 1/8 inch to clear the pan.

This PML transmission pan increases the amount of fluid by 2 1/2 to 3 quarts over stock. It is about 1 inch taller than the stock pan.

Once installed, this pan will not be parallel to the ground. The transmission case gasket surface is also slanted. Other PML pans for the Dodge RFE transmission are parallel to the ground once installed.

PML makes four different pans for the Dodge RFE transmission series (45RFE, 5-45RFE, 65RFE, 66RFE, 68RFE). The stock pans and filters are also shown in the image below for reference.

The following vehicles most likely will need a PML pan with a step to avoid interference from the exhaust or frame cross members. Please see part number 11078 or part number 11079 if you have:

Ram 1500 with Hemi engine, 2006 & newer (exhaust)
Ram 2500 & 3500 with Hemi engine (exhaust)
4WD Dakota 2000 - 2004 and 4WD Durango 2000 - 2003 (frame)
Dakota 2005 & newer and Durango 2004 & newer (frame)
Durango with Hemi engine (check for clearance with a catalytic converter in the front)
Jeep Grand Cherokee with Hemi engine: (check for clearance with a catalytic converter in the front)

If you have a skid plate, you may need to move it downwards away from the transmission. Please see information on an installation further down on this page. These Jeeps (along with some Dodge vehicles) usually have skid plates that limit clearance:
