This differential cover fits the rear end on the GM Corporation 8 7/8" (8.875") 12 bolt differentials used on many GM and Chevy cars in the 1960s and 1970s. Some vehicles which may be able to use this cover include:
- Camaro 1967 to 1972
- Chevelle 1965 to 1972
- El Camino 1965 to 1972
- Monte Carlo 1970 to 1972
- Nova 1965 to 1967
Always check to verify differential and clearance for a larger cover. Configurations vary. GM 8.2 inch ring gear 10 bolt differentials were also used on many of these vehicles. This cover is larger than stock so check space available.
Number of Bolts: 10 bolts
Volume: 1.0 quarts over stock
Dimensions: Click here for dimensions. Depth inside is 3 ¾ inches

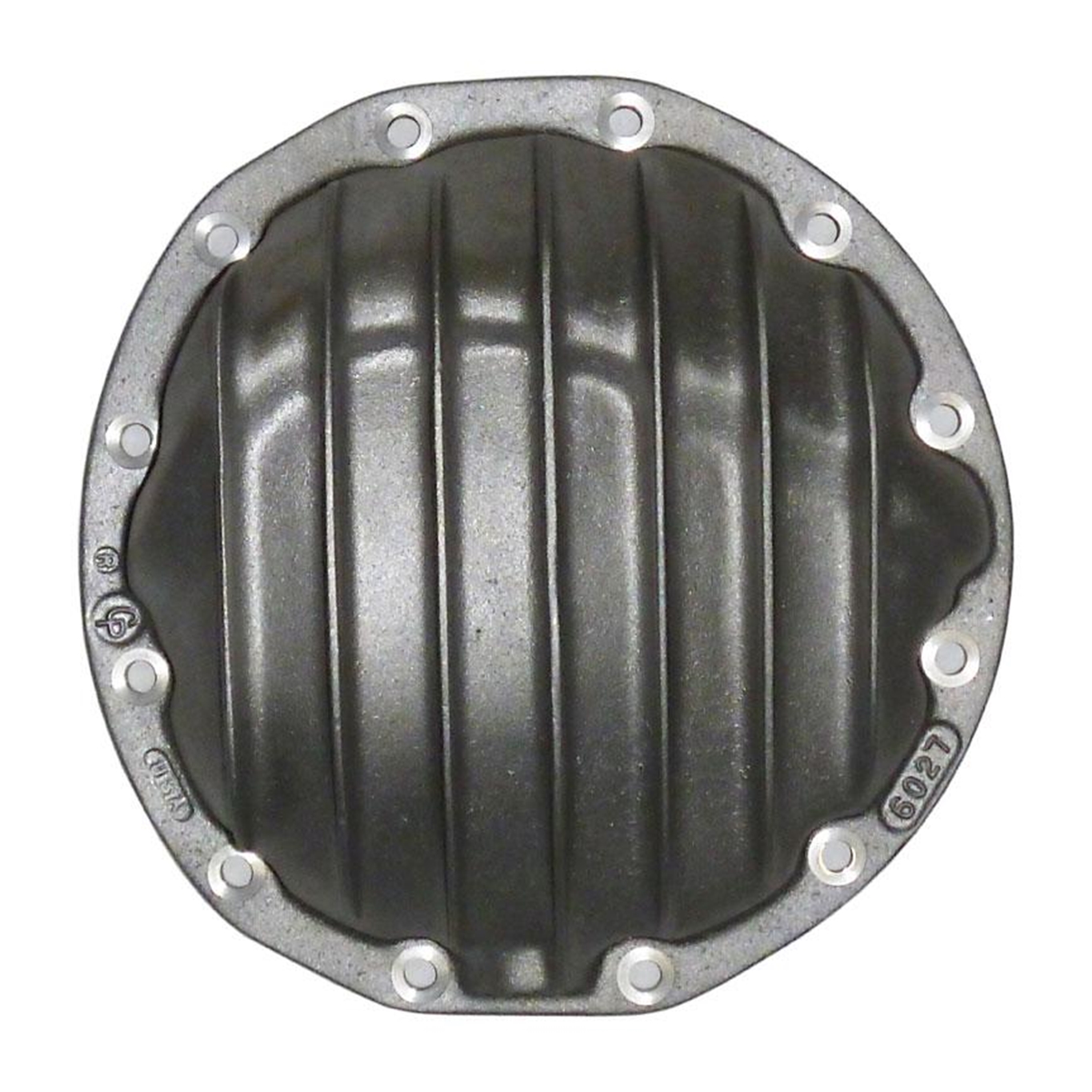

This PML cover fits the GM 8.875 inch (8 7/8") ring gear 12 bolt differential for cars.
Benefits:
- Extra capacity
- Drain hole and magnetic plug to simplify maintenance
- Fins for heat dissipation and classic styling
- Sand cast aluminum construction for thick walls
- Machined gasket flange for a secure seal
- Round shape similar to stock cover
Drain
During servicing, a hole on bottom of PML cover provides quick and easy draining fluid without removing the cover. PML includes a magnetic drain plug with each cover.
Cover also ships with new mounting bolts.
PML Differential Cover Compared to Stock
Click on image to view larger in a new tab or window.
